09/04/2026 – All-in-one bolt manufacturing machine
Hot forming for larger diameters
All-in-one machines combine wire feeding from the coil, straightening and cutting, upsetting the head and rolling the thread in a single system and in one continuous process. Amba has now introduced a machine with wire diameters of up to 18mm/0.71inches that integrates inductive heating.

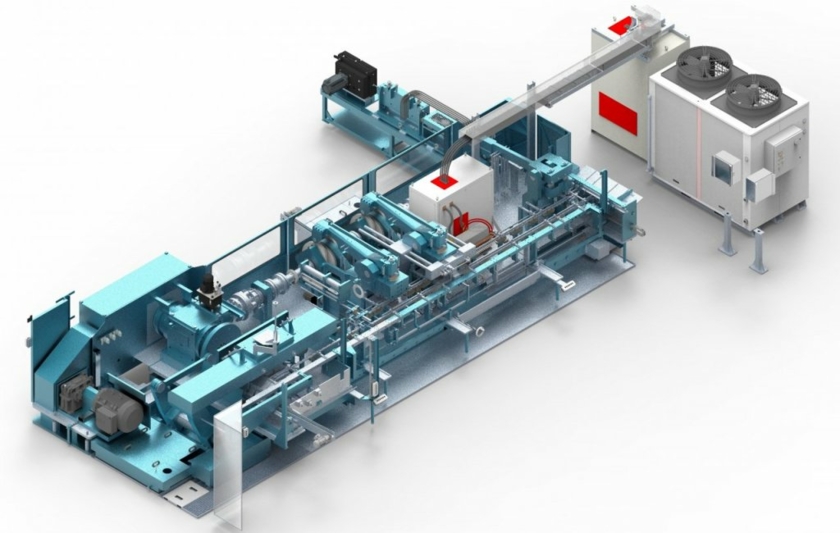

Top view of the complete machine with induction unit. A combination of multiple processes in a very compact space. © Aachener Maschinenbau
Press stations 1 and 2 (preforming/final forming) process blanks at temperatures exceeding 1,900°F. © Aachener Maschinenbau
The blanks exiting the induction station are preformed at station one and transported side by side within the transfer system. Every second, the blanks advance by one position. © Aachener Maschinenbau
The last press operation involves calibrating the part © Aachener Maschinenbau
The finished product. Such volume redistribution in only two press stages is only feasible by hot forming. © Aachener Maschinenbau
Top view of the complete machine with induction unit. A combination of multiple processes in a very compact space. © Aachener Maschinenbau
